ViaDry / PowerTower Compressed air dryers

Refrigeration drying is the most energy-efficient and economical solution for the treatment of compressed air. ViaDry and PowerTower meet the highest demands for quality and performance for industry and trade. Our dryers are equipped with self-cleaning stainless steel plate heat exchanger systems with integrated recuperator. These heat exchangers are maintenance-free and require no pre-filtration of the compressed air. They guarantee constant, optimum compressed air quality at the lowest possible pressure loss.

  • Flow rate at 3°C pressure dew point: 35 – 3.400Nm³/h

  • Compressive strength: pmax 16bar
  • Electronic, level-controlled steam traps

  • Refrigerated dryer versions
  • Special versions for special media and operating conditions
  • Broad variety of available operating voltages

ViaDry VD 35-280

  • Flow rate: 35-280Nm³/h, pmax: 16bar

  • Stainless steel plate heat exchanger system
  • S7-Tendency indicator
  • Electronic steam trap

  • Wall and floor mounting
  • ViaDry-Brochure
ModellDownloadLuftvolumenstrom bei 3°C DTPLeistungs- AufnahmeLuft-Anschlusselektrischer AnschlussAbmaße B x T x HGewicht
[Nm³/h][l/min][KW][Ein/Aus][V-Hz-Ph][mm][kg]
VD8-35PDF356000,23/4" i230-50/60-1325x265x74524
VD8-65PDF651100 0,33/4" i230-50/60-1 325x265x74530
VD8-100PDF1001.7000,43/4" i230-50/60-1325x265x74535
VD8-150PDF1502500051 1/2" i230-50/60-1405x420x84548
VD8 220PDF22037000,71 1/2" i230-50/60-1405x420x84556
VD8 280PDF28047000,81 1/2" i230-50/60-1405x420x84561

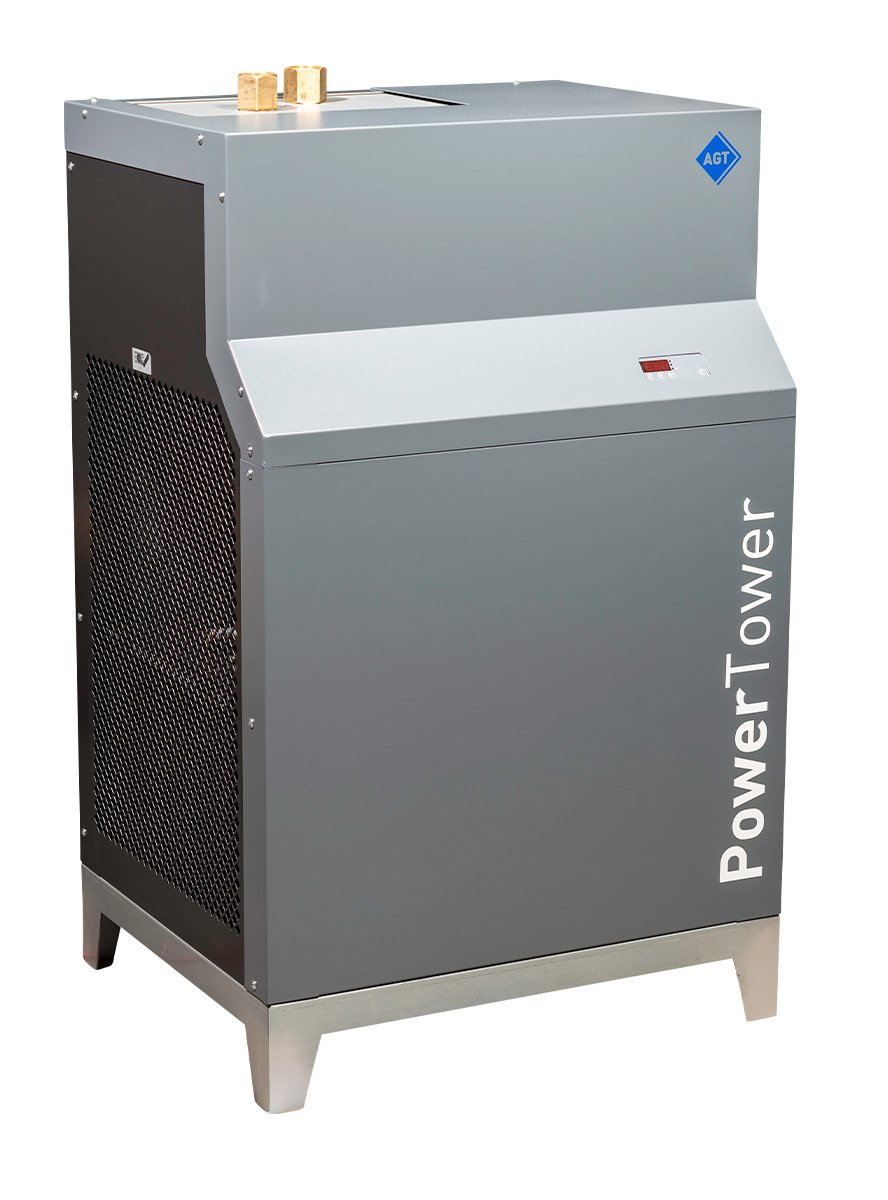

PowerTower HP
High pressure compressed air dryer

  • Flow rate at 3°C Pressure dew point: 450 – 2.500Nl/min
  • Compressive strength: pmax 350/420bar
  • Optionally with stainless steel separator and steam trap

  • Special versions for special media and operating conditions
  • Broad variety of available operating voltages
ModellDownloadLuftvolumenstrom bei 3°C DTPLeistungs- AufnahmeLuft-Anschlusselektrischer AnschlussAbmaße B x T x HGewicht
[Nm³/h][l/min][KW][Ein/Aus][V-Hz-Ph][mm][kg]
MDKT 144-63PDF1442.4001,53/4" i400-50-3800x670x1300154
MDKT 144-80PDF1442.4001,53/4" i400-50-3800x670x1300154
MDKT 150-80PDF1502.5001,01" i230-50-1800x670x1300142
MDKT 156-100PDF1562.6001,01" i230-50-1800x670x1300141
MDKT 200-100PDF1983.3001,01" i230-50-1800x670x1300142

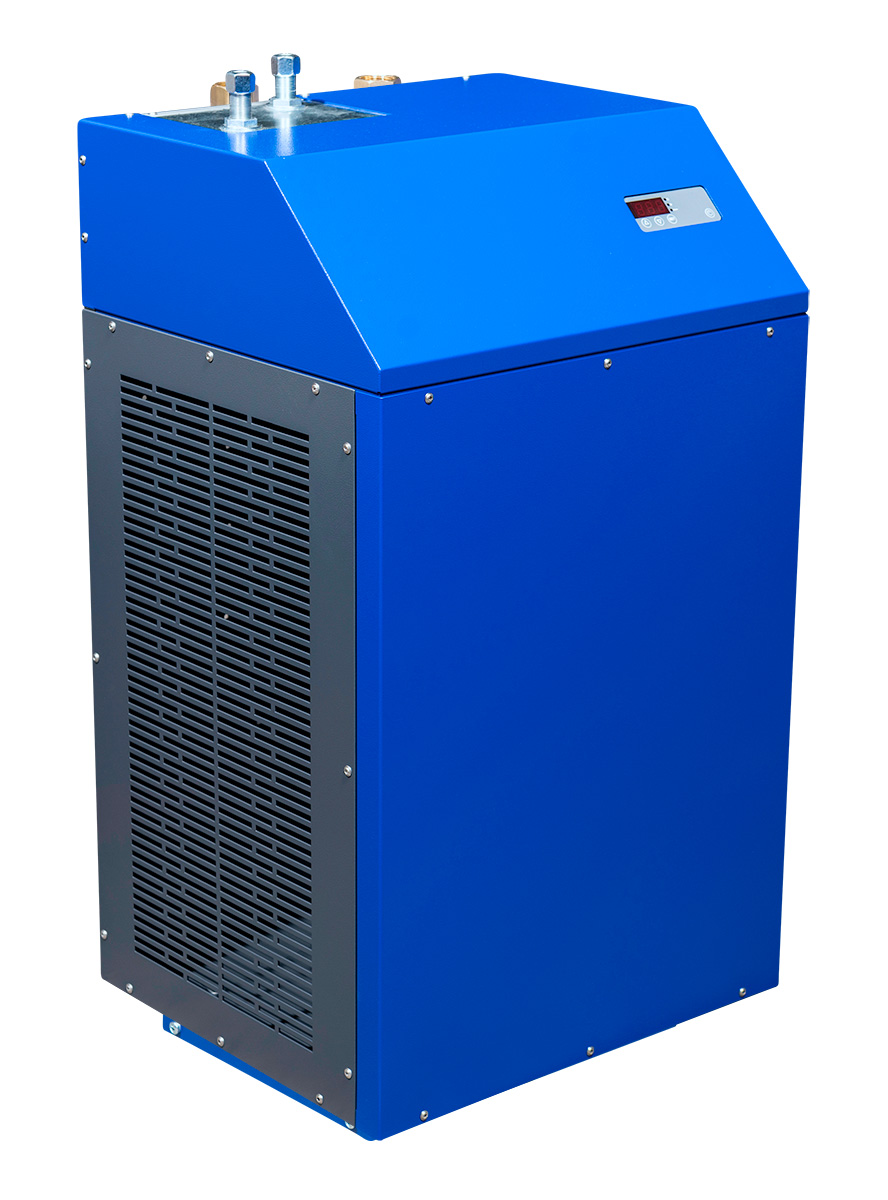

PowerTower HP
High pressure compressed air dryer

High pressure applications need safe and reliable equipment. The refrigeration compressed air dryers of the PowerTower HP series are consistently designed for the special high-pressure requirements. They guarantee optimum compressed air treatment for applications up to 350/420bar. The dryers feature generously dimensioned heat exchanger systems with stainless steel surfaces and vertical air flow. Optionally, the dryers are equipped with stainless steel low-speed separators and time-relay condensate drains.

  • Flow rate at 3°C Pressure dew point: 35 – 3.400Nm³/h
  • Compressive strength: pmax 16bar
  • Electronic, level-controlled steam traps
  • Refrigerated dryer versions
  • Special versions for special media and operating conditions
  • Broad variety of available operating voltages

PowerTower HP

  • Flow rate: 450 – 2.500l/h, pmax: 350/420bar

  • Stainless steel heat exchanger system
  • Digital display/control
  • Stainless steel separator optional (ACD model)
  • Optional steam trap (ACD model)
ModellDownloadLuftvolumenstrom bei 3°C DTPLeistungs- AufnahmeLuft-Anschlusselektrischer AnschlussAbmaße B x T x HGewicht
[Nm³/h][l/min][KW][Ein/Aus][V-Hz-Ph][mm][kg]
PT 27 HPPDF274500,42S12230-50/60-1500x250x80543-52
PT 54 HPPDF549000,56S12230-50/60-1500x250x80544-53
PT 85 HPPDF8514000,60S12230-50/60-1500x250x80550-59
PT 120 HPPDF12020000,70S12230-50/60-1500x250x80565-74
PT 150 HPPDF15025000,85S12230-50/60-1500x250x80569-78
